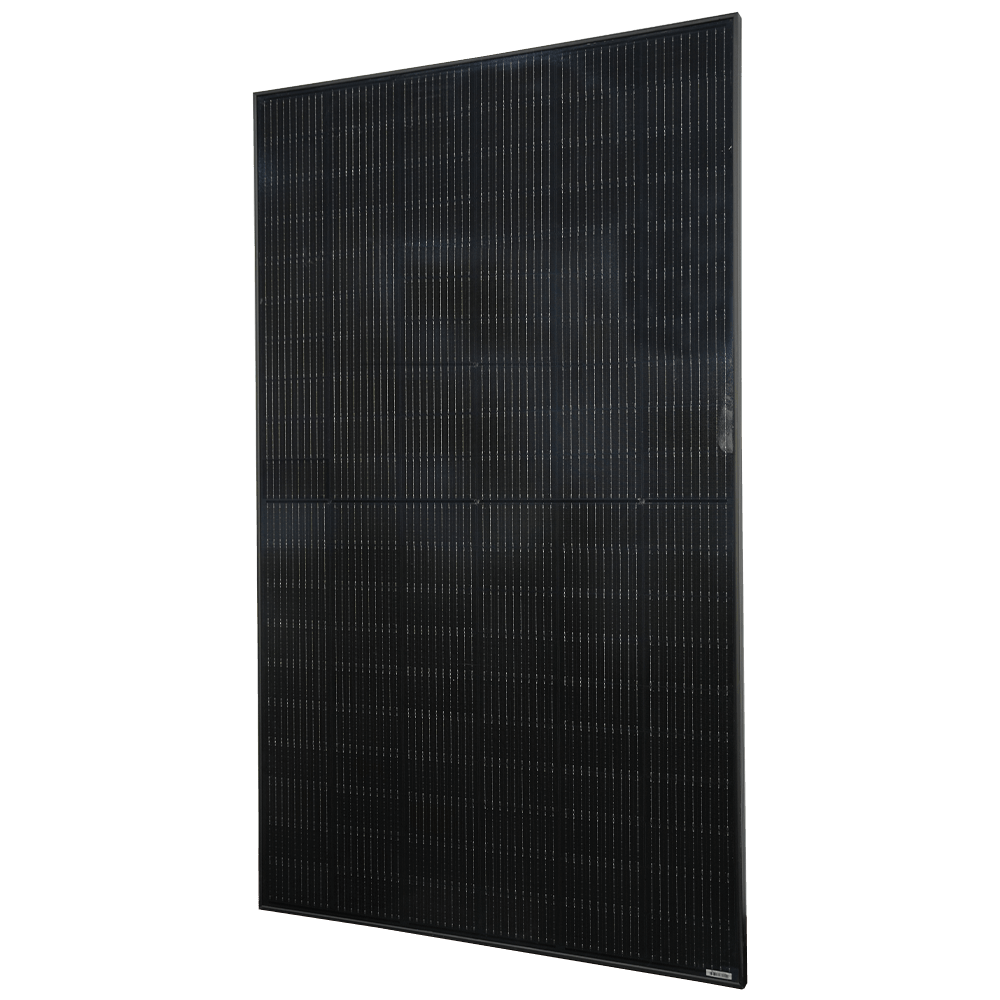

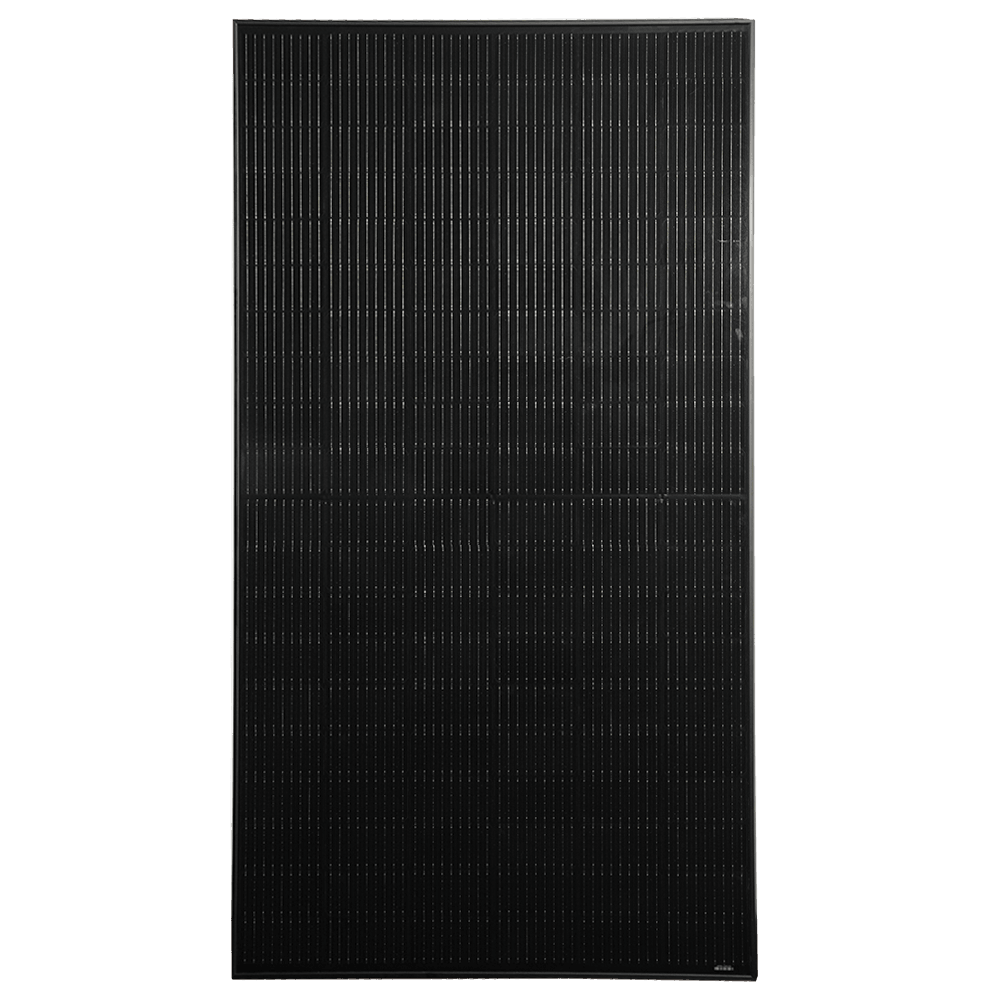

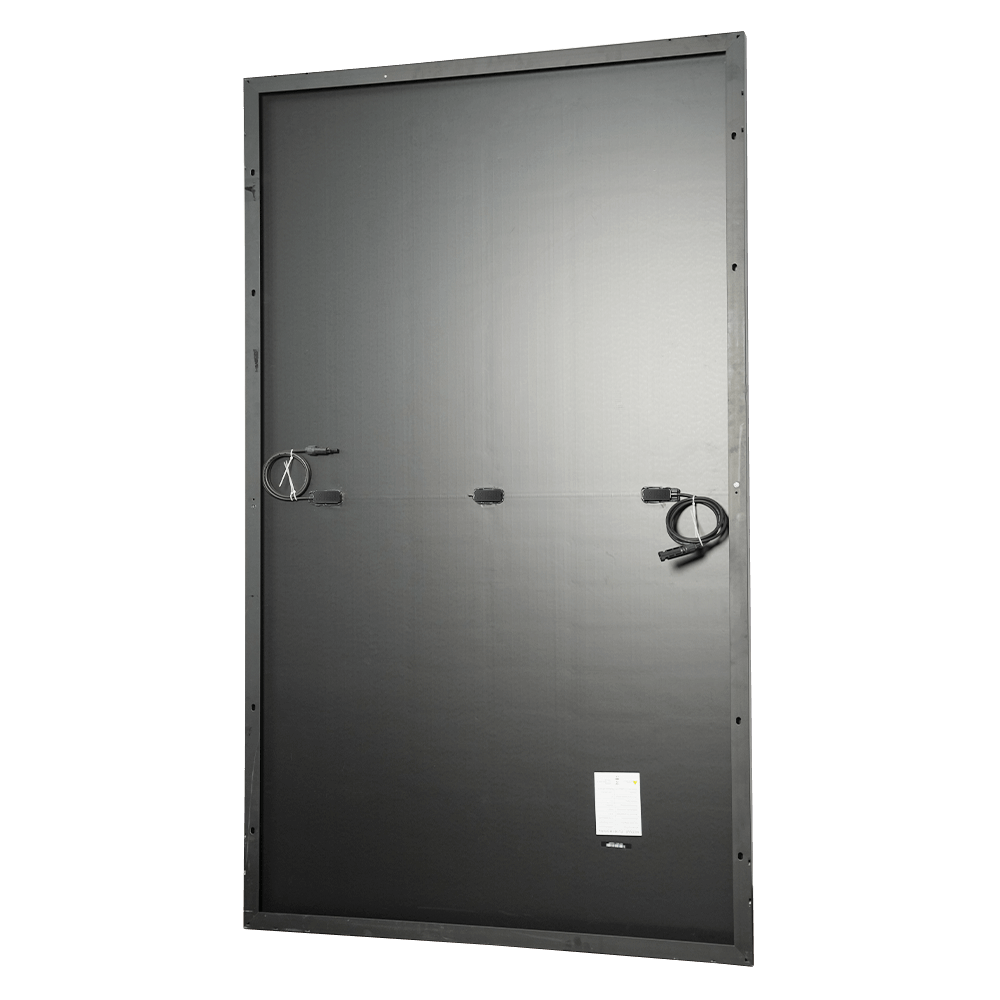

Ex lagana silicon 166mm et cellae monocrystallinae PERC, usque ad 385Wp potentiae emissi cum consilio porttitor, et efficientia usque ad 21.13%. pertingere potest.
| Electrical Specification | |||||||||||||||||
| OMNIBUS Type | M166H660-350W | M166H660-355W | M166H660-360W | M166H660-365W | M166H660-370W | M166H660-375W | M166H660-380W | M166H660-385W | |||||||||
| Test signa | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power | Pmax(W) | 350 | 258.5 | 355 | 262.6 | 360 | 266.7 | 365 | 270.8 | 370 | 274.2 | 375 | 277.5 | 380 | 280.9 | 385 | 284.3 |
| Maximum Power intentione | Vmp(V) | 33.05 | 30.66 | 33.39 | 30.89 | 33.74 | 31.12 | 34.09 | 31.35 | 34.46 | 31.48 | 34.83 | 31.61 | 35.2 | 31.74 | 35.45 | 31.87 |
| Maximum Power Current | Imp(A) | 10.59 | 8.43 | 10.63 | 8.5 | 10.67 | 8.57 | 10.71 | 8.64 | 10.74 | 8.71 | 10.78 | 8.78 | 10.82 | 8.85 | 10.86 | 8.92 |
| Open Circuit Voltage | Voc(V) | 39.83 | 37.8 | 40.11 | 38 | 40.39 | 38.2 | 40.67 | 38.4 | 40.95 | 38.6 | 41.23 | 38.8 | 41.51 | 39 | 41.79 | 39.2 |
| Brevis Circuitu Current | Isc(A) | 11.07 | 8.91 | 11.1 | 8.97 | 11.13 | 9.03 | 11.16 | 9.09 | 11.18 | 9.15 | 11.2 | 9.21 | 11.22 | 9.27 | 11.24 | 9.33 |
| Module Efficens | (%) | 19.21 | 19.49 | 19.76 | 20.04 | 20.31 | 20.59 | 20.86 | 21.13 | ||||||||
| Virtus output tolerantia | (%) | 0-±5 | |||||||||||||||
| Per tolerantia Power Test | (W) | ±3 | |||||||||||||||
| (STC*)* irradiatio 1000W/㎡，Modulus Temperature 25℃，Aeris Missa 1.5 (NOCT*)* Irradiantia 800W/㎡，Ambient Temperature 20℃，Velitas 1m/s" | |||||||||||||||||
| Mechanica Data | |
| Numerus Cellulae | 120Cells(6×20) |
| Dimensiones moduli L*W*H（mm） | 1755× 1038×35mm |
| Pondus kg | 19kg |
| vitrum | Alta diaphaneitas vitri solaris 3.2mm |

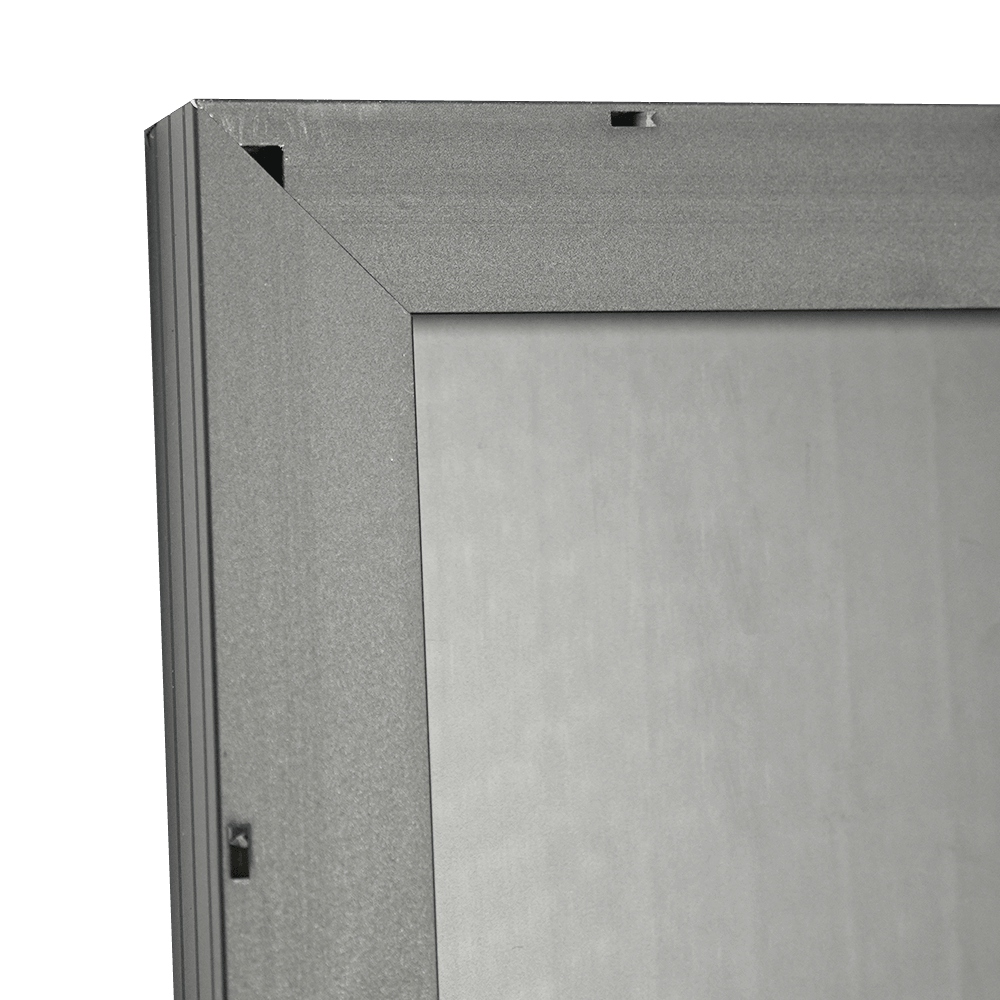

| Artus | anodized aluminium offensionis |

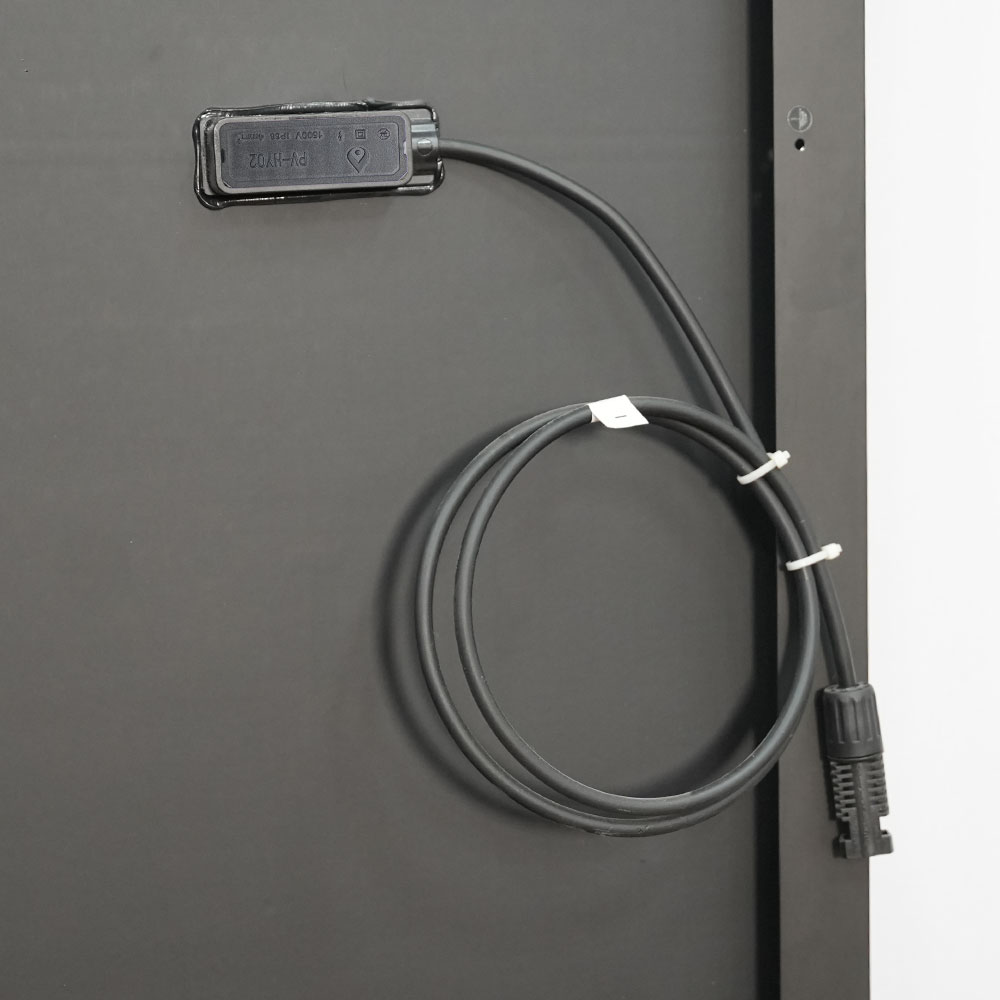

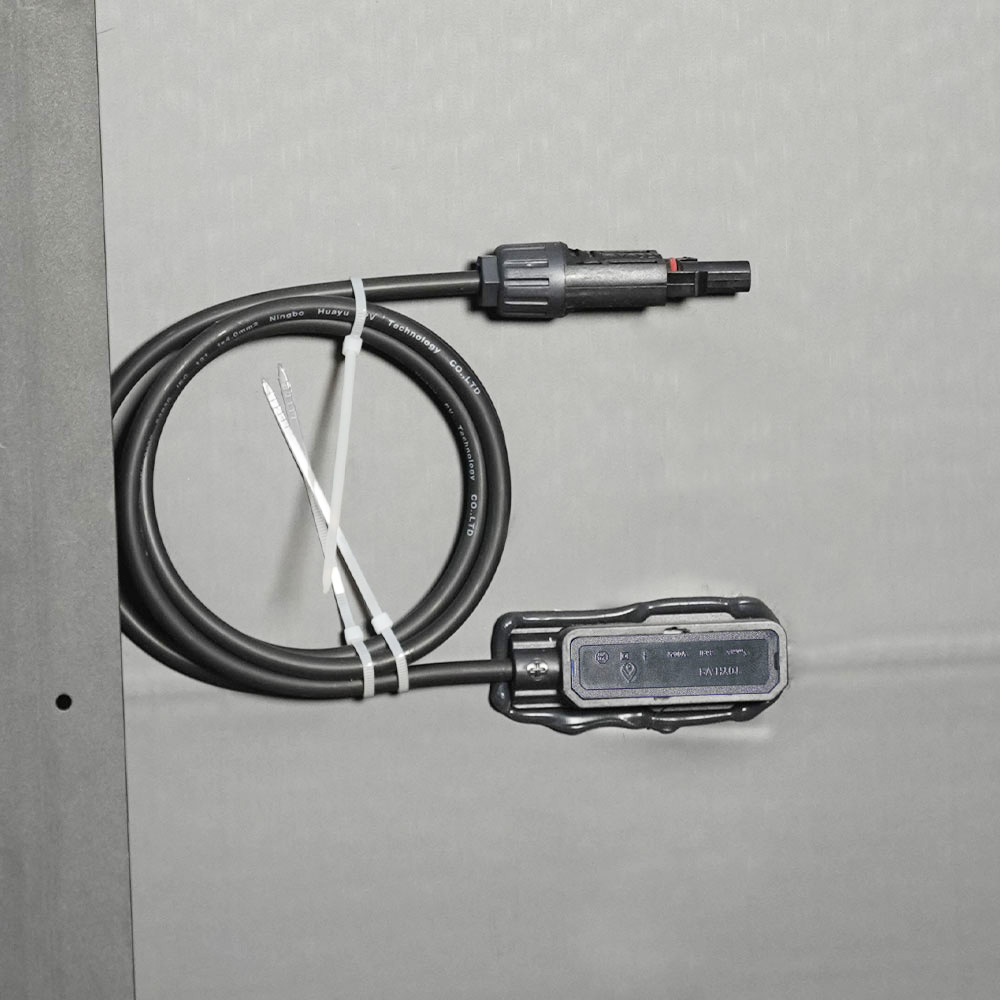

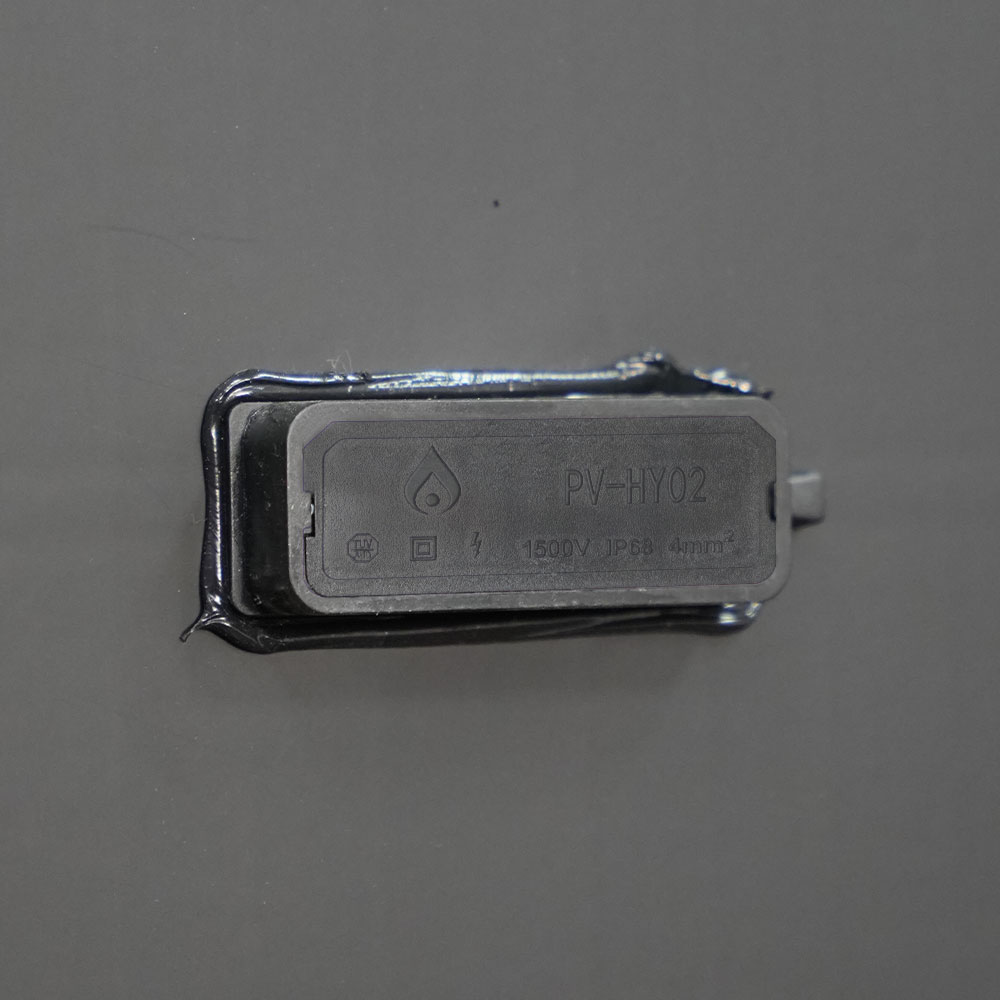

| J-BOX | IP68，3 diodes |
| Cable | 4.0mm²，300mm, or nativus |
| Ventus / nix Load | 2400Pa/5400Pa* |
| Connector | MC Compatible |
| Maximam vim duarum trilineum ratio | 70±5% |
| * Pro magis details placere reprehendo institutionem manual | |
| Temperature Ratings | |
| Temperature Coefficiens Pmax | -0.39%/ |
| Nominal Operating Cell Temperature (NOCT) | 44±2℃ |
| Temperature Coefficiens Isc | 0.06%/℃ |
| Temperature Coefficiens Vocis | -0.30%/ |
| Maximum Ratings | |
| Temperature operational | -40- 85℃ |
| Maxime Ratio intentione | 1500V DC |
| Max Series Fuse Rating | 20A |
| Packaging configurationis | |
| OMNIBUS per box | 31 31 5=67pieces |
| OMNIBUS per 40' continens | 871 pieces(35Frame) |
