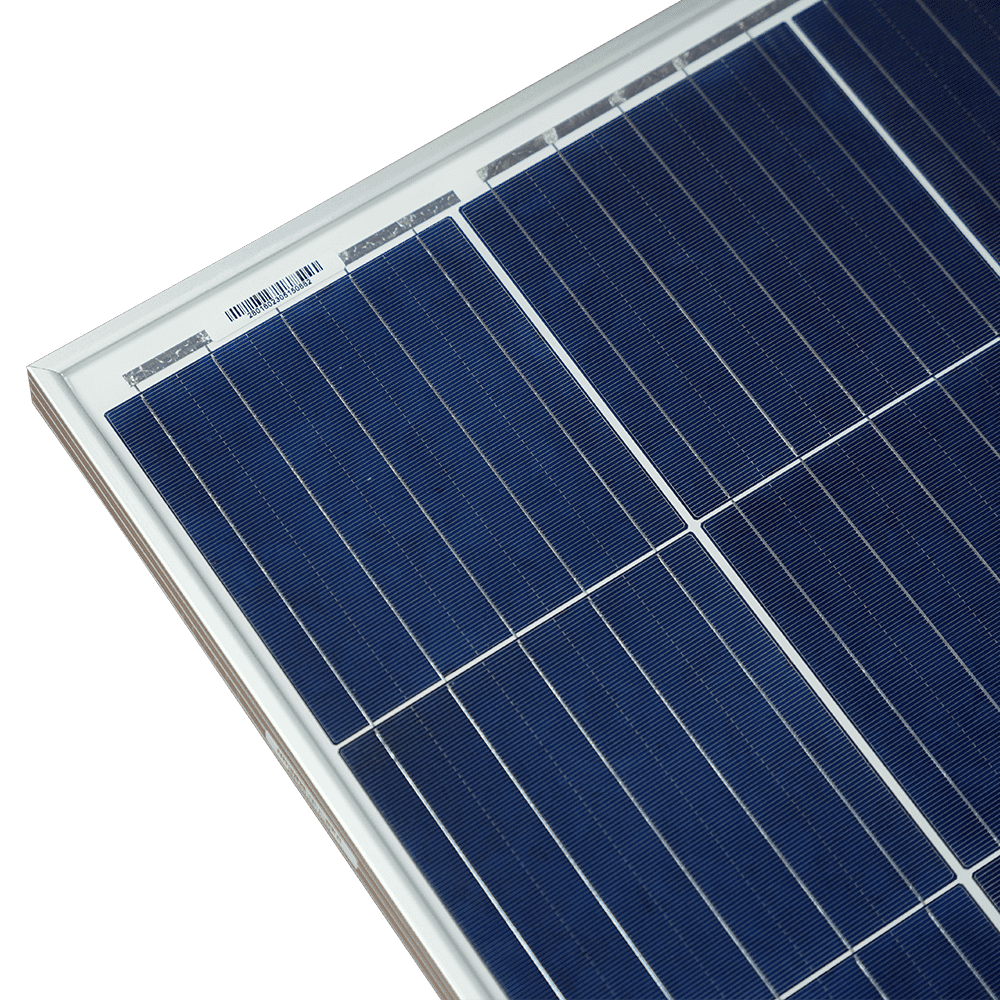

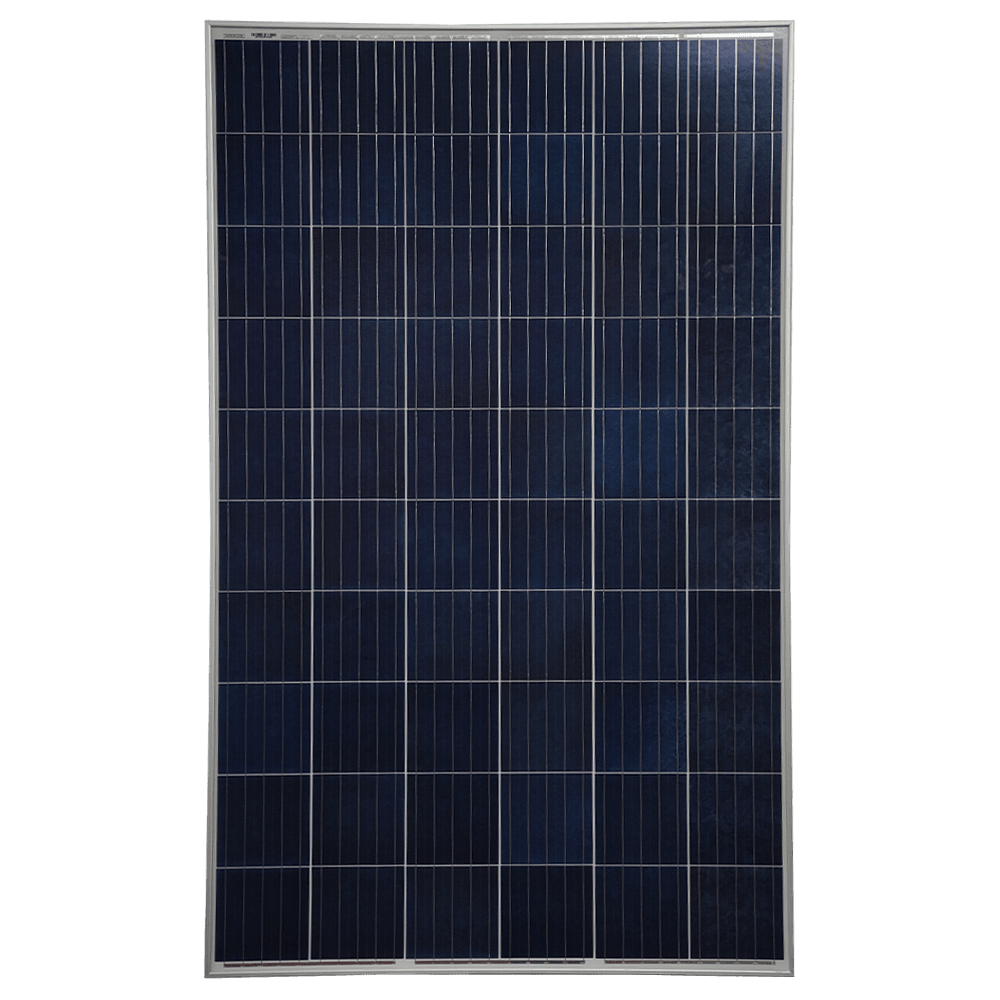

Ex lagana silicon 157 mm et cellulis polycrystallinis PERC, usque ad 290Wp potentiae emissi cum consilio porttitor, et efficientia usque ad 17.72%. pertingere potest.
| Electrical Specification | |||||||||||||||||
| OMNIBUS Type | P157W660-255W | P157W660-260W | P157W660-265W | P157W660-270W | P157W660-275W | P157W660-280W | P157W660-285W | P157W660-290W | |||||||||
| Test signa | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power | Pmax(W) | 255 | 189.26 | 260 | 192.71 | 265 | 196.19 | 270 | 199.71 | 275 | 203.44 | 280 | 207.14 | 285 | 210.84 | 290 | 214.54 |
| Maximum Power intentione | Vmp(V) | 30.83 | 28.29 | 31.06 | 28.55 | 31.29 | 28.81 | 31.52 | 29.07 | 31.75 | 29.33 | 31.98 | 29.59 | 32.21 | 29.78 | 32.44 | 29.99 |
| Maximum Power Current | Imp(A) | 8.27 | 6.69 | 8.37 | 6.75 | 8.47 | 6.81 | 8.57 | 6.87 | 8.66 | 6.93 | 8.76 | 6.99 | 8.85 | 7.07 | 8.94 | 7.14 |
| Open Circuit Voltage | Voc(V) | 37.01 | 35.24 | 37.26 | 35.43 | 37.5 | 35.62 | 37.74 | 35.81 | 37.98 | 36 | 38.18 | 36.19 | 38.4 | 36.3 | 38.62 | 36.46 |
| Brevis Circuitu Current | Isc(A) | 8.7 | 7.11 | 8.8 | 7.18 | 8.9 | 7.25 | 9 | 7.32 | 9.1 | 7.39 | 9.2 | 7.46 | 9.3 | 7.53 | 9.4 | 7.61 |
| Module Efficens | (%) | 15.58 | 15.88 | 16.19 | 16.49 | 16.80 | 17.11 | 17.41 | 17.72 | ||||||||
| Virtus output tolerantia | (%) | 0-±5 | |||||||||||||||
| Per tolerantia Power Test | (W) | ±3 | |||||||||||||||
| (STC*)* irradiatio 1000W/㎡，Modulus Temperature 25℃，Aeris Missa 1.5 (NOCT*)* Irradiantia 800W/㎡，Ambient Temperature 20℃，Velitas 1m/s" | |||||||||||||||||

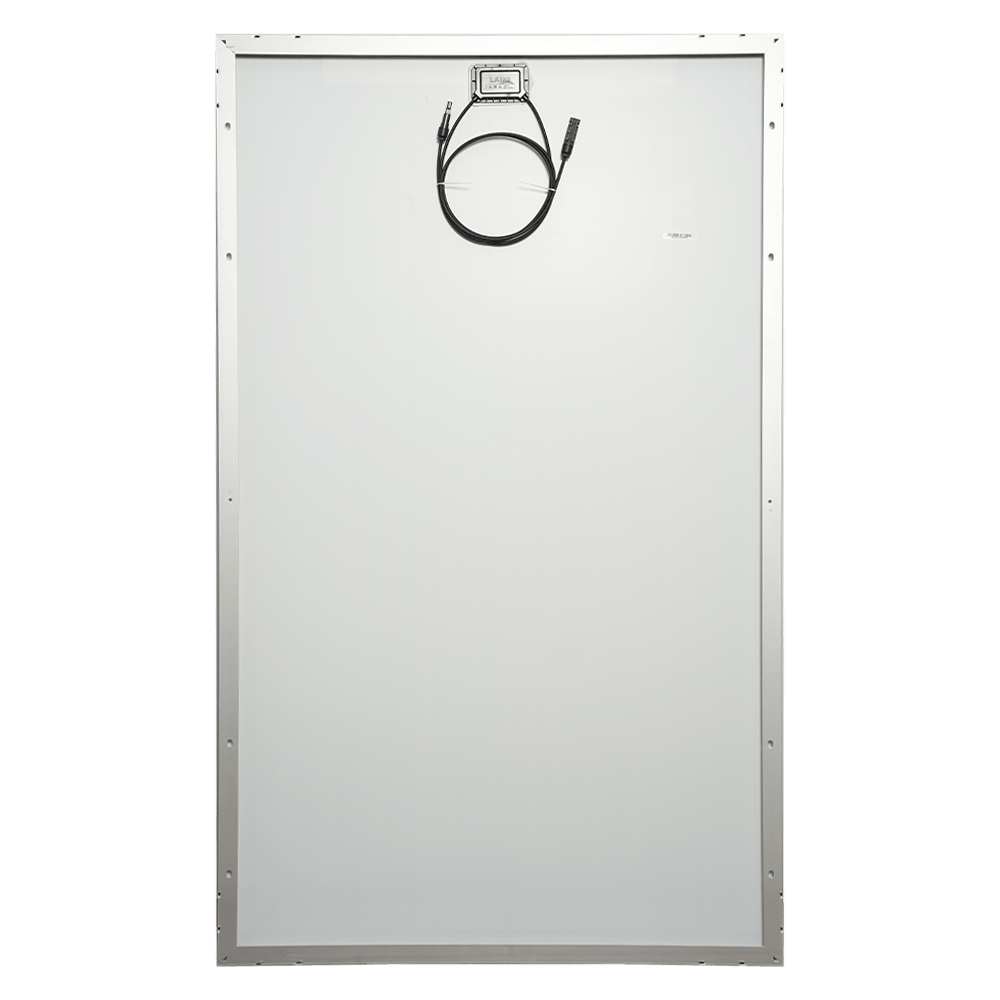

| Mechanica Data | |
| Numerus Cellulae | 60Cells(6/10) |
| Dimensiones moduli L*W*H（mm） | 1650×992×35mm |
| Pondus kg | 18kg |
| vitrum | Alta diaphaneitas vitri solaris 3.2mm |
| Backsheet | album |
| Artus | anodized aluminium offensionis |
| J-BOX | IP65，3 diodes |
| Cable | 4.0mm²，900mm, seu nativus |
| Ventus / nix Load | 2400Pa/5400Pa* |
| Connector | MC Compatible |
| * Pro magis details placere reprehendo institutionem manual | |
| Temperature Ratings | |
| temperatus coefficiens Pmax | -0.350%/ |
| Nominal Operating Cell Temperature (NOCT) | 44±2℃ |
| Temperature Coefficiens Isc | 0.041%/ |
| Temperature Coefficiens Vocis | -0.27%/℃ |
| Maximum Ratings | |
| Temperature operational | -40- 85℃ |
| Maxime Ratio intentione | 1500V DC |
| Max Series Fuse Rating | 25A |
| Packaging configurationis | |
| OMNIBUS per box | 31 31 6=68pieces |
| OMNIBUS per 40' continens | 952pieces(35Frame) |
