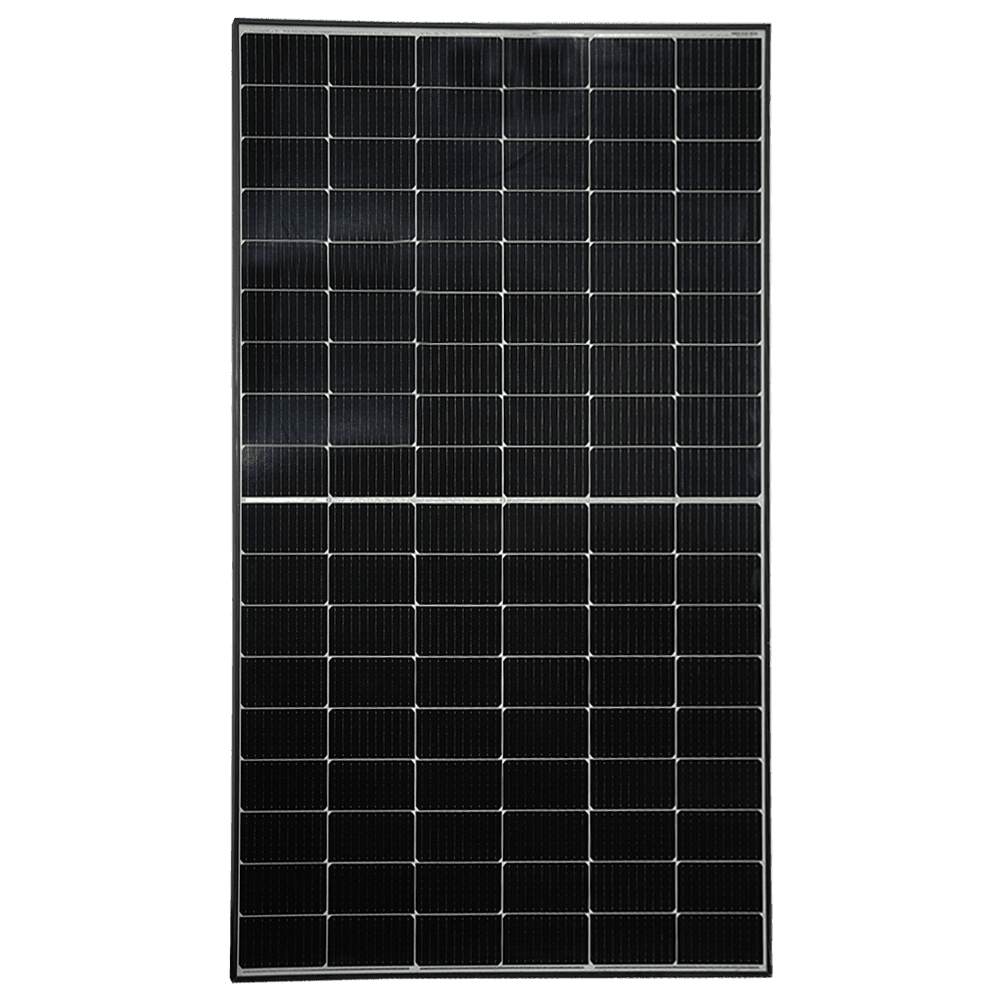

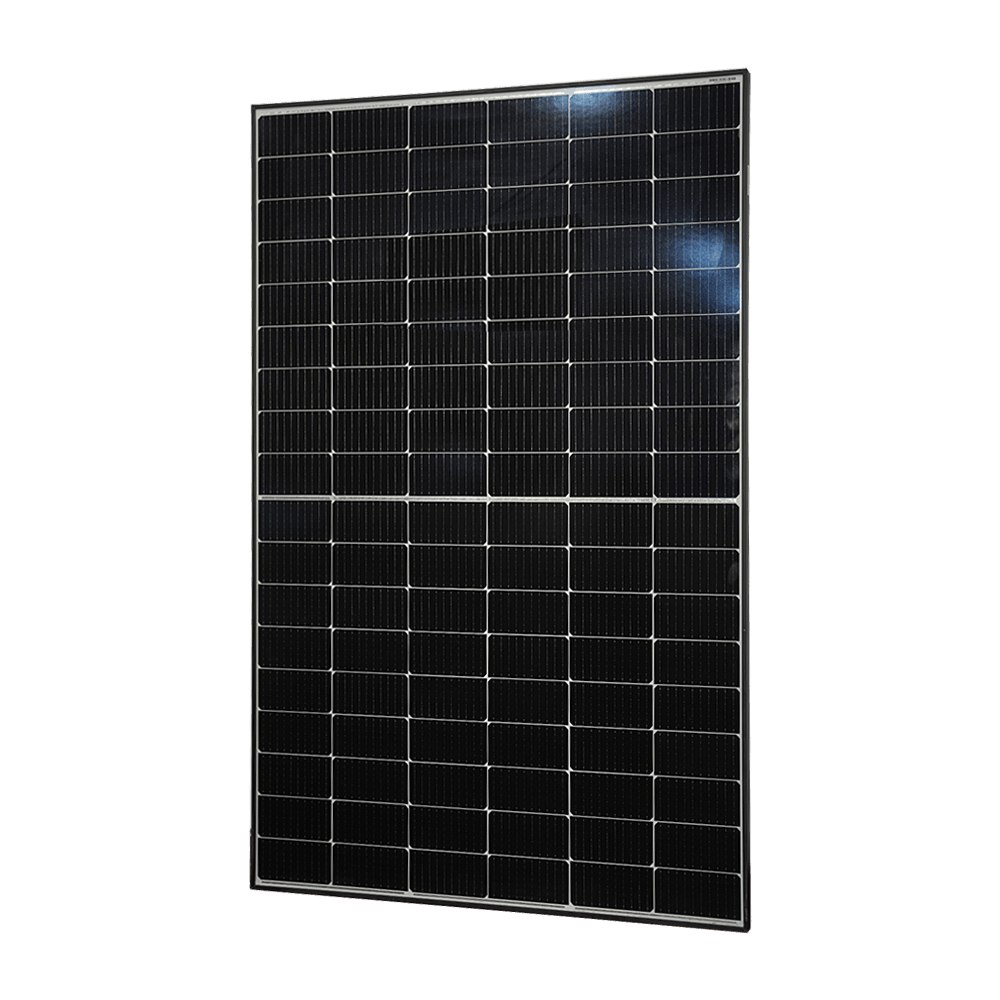

Ex laganis 182mm siliconibus et TOPCON cellulis monocrystallicis, usque ad 445Wp potentiae emissi cum consilio porttitor, et efficientia usque ad 22.76%. pertingere potest.
| Electrical Specification | |||||||||||||||||
| OMNIBUS Type | M182H654-410W | M182H654-415W | M182H654-420W | M182H654-425W | M182H654-430W | M182H654-435W | M182H654-440W | M182H654-445W | |||||||||
| Test signa | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power | Pmax(W) | 410 | 311 | 415 | 315 | 420 | 318 | 425 | 322 | 430 | 326 | 435 | 330 | 440 | 334 | 445 | 338 |
| Maximum Power intentione | Vmp(V) | 31.5 | 29.6 | 31.7 | 29.8 | 31.9 | 30 | 32.1 | 30.2 | 32.3 | 30.3 | 32.5 | 30.5 | 32.7 | 30.7 | 32.9 | 30.9 |
| Maximum Power Current | Imp(A) | 13.05 | 10.52 | 13.11 | 10.57 | 13.17 | 10.62 | 13.24 | 10.67 | 13.32 | 10.74 | 13.39 | 10.82 | 13.46 | 10.88 | 13.53 | 10.94 |
| Open Circuit Voltage | Voc(V) | 37.5 | 35.8 | 37.7 | 36 | 37.9 | 36.2 | 38.1 | 36.4 | 38.3 | 36.6 | 38.4 | 36.8 | 38.6 | 37 | 38.8 | 37.2 |
| Brevis Circuitu Current | Isc(A) | 13.85 | 11.15 | 13.92 | 11.21 | 13.98 | 11.27 | 14.05 | 11.33 | 14.12 | 11.38 | 14.18 | 11.44 | 14.25 | 11.49 | 14.32 | 11.54 |
| Module Efficens | (%) | 20.97 | 21.23 | 21.48 | 21.74 | 21.99 | 22.25 | 22.51 | 22.76 | ||||||||
| Virtus output tolerantia | (%) | 0-±5 | |||||||||||||||
| Per tolerantia Power Test | (W) | ±3 | |||||||||||||||
| (STC*)* irradiatio 1000W/㎡，Modulus Temperature 25℃，Aeris Missa 1.5 (NOCT*)* Irradiantia 800W/㎡，Ambient Temperature 20℃，Velitas 1m/s" | |||||||||||||||||
| Mechanica Data | |
| Numerus Cellulae | 108Cells(6×18) |
| Dimensiones moduli L*W*H（mm） | 1724×1134×30mm |
| Pondus kg | 21kg |
| vitrum | Alta diaphaneitas vitri solaris 3.2mm |

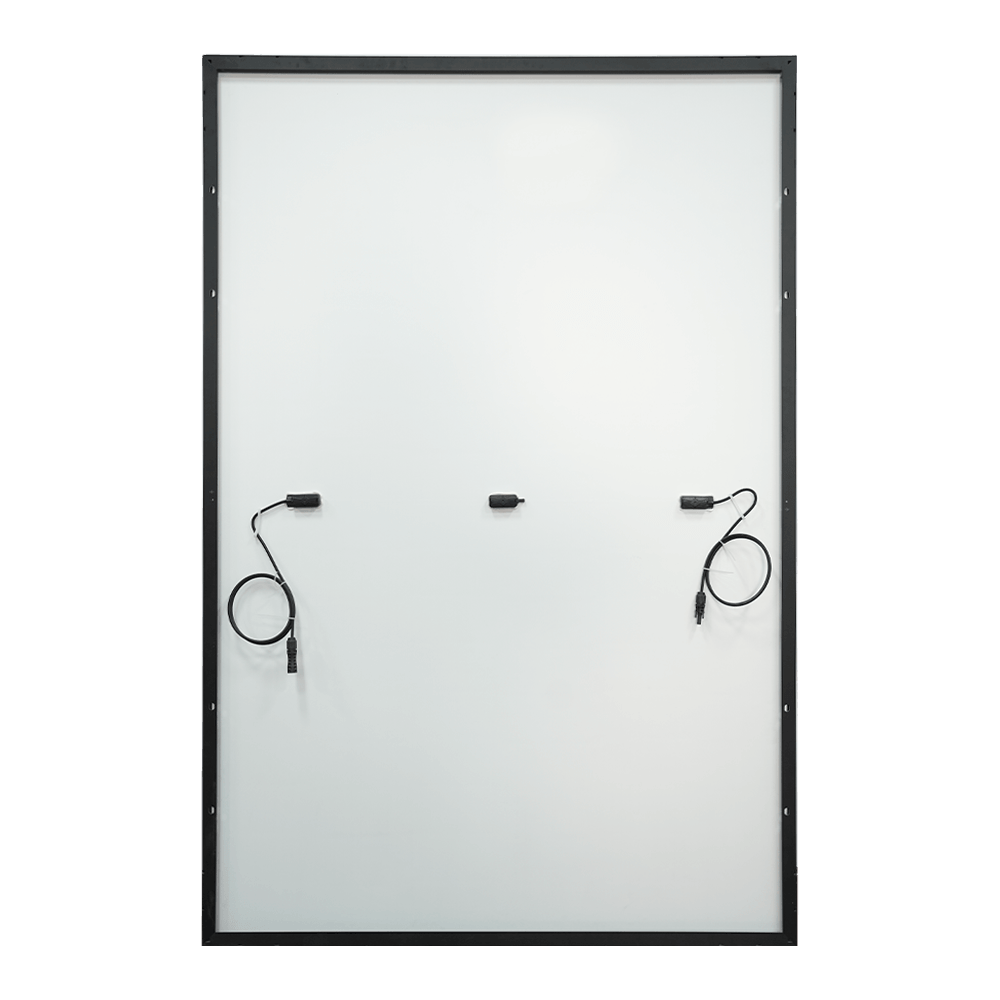

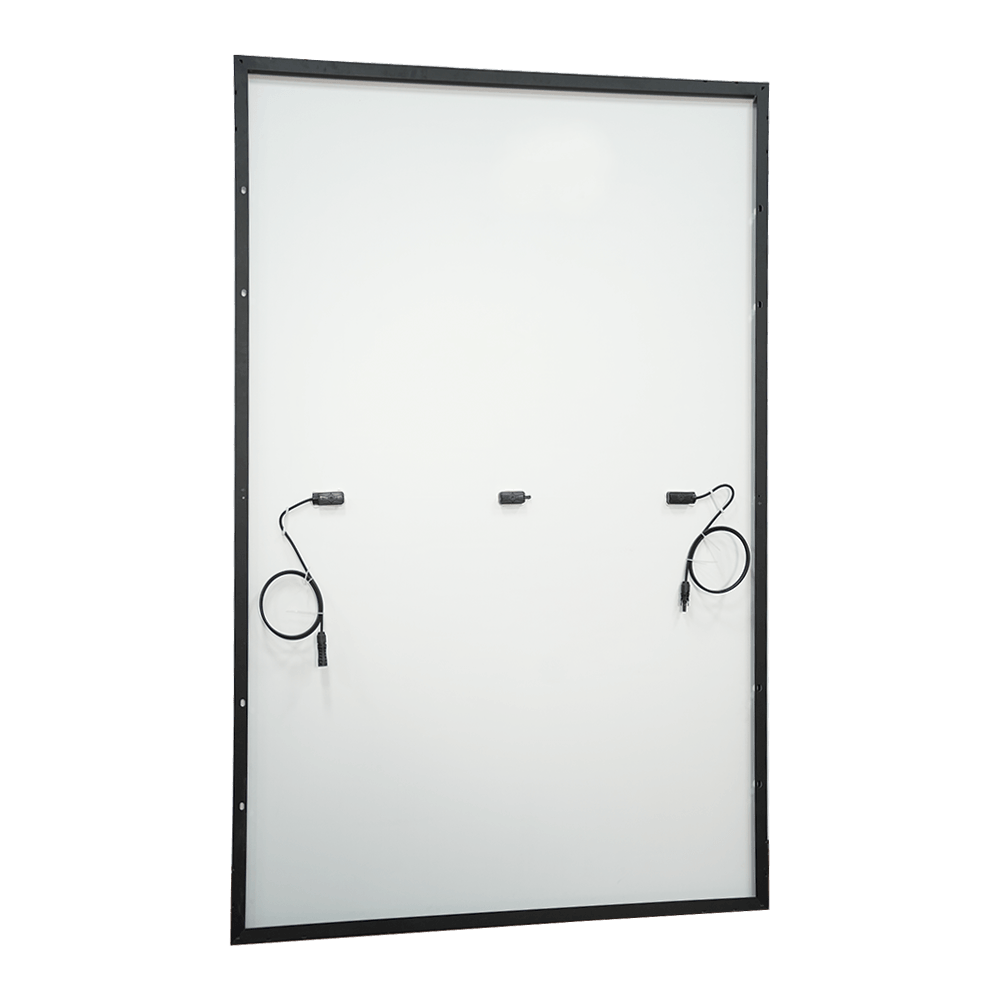

| Backsheet | album |

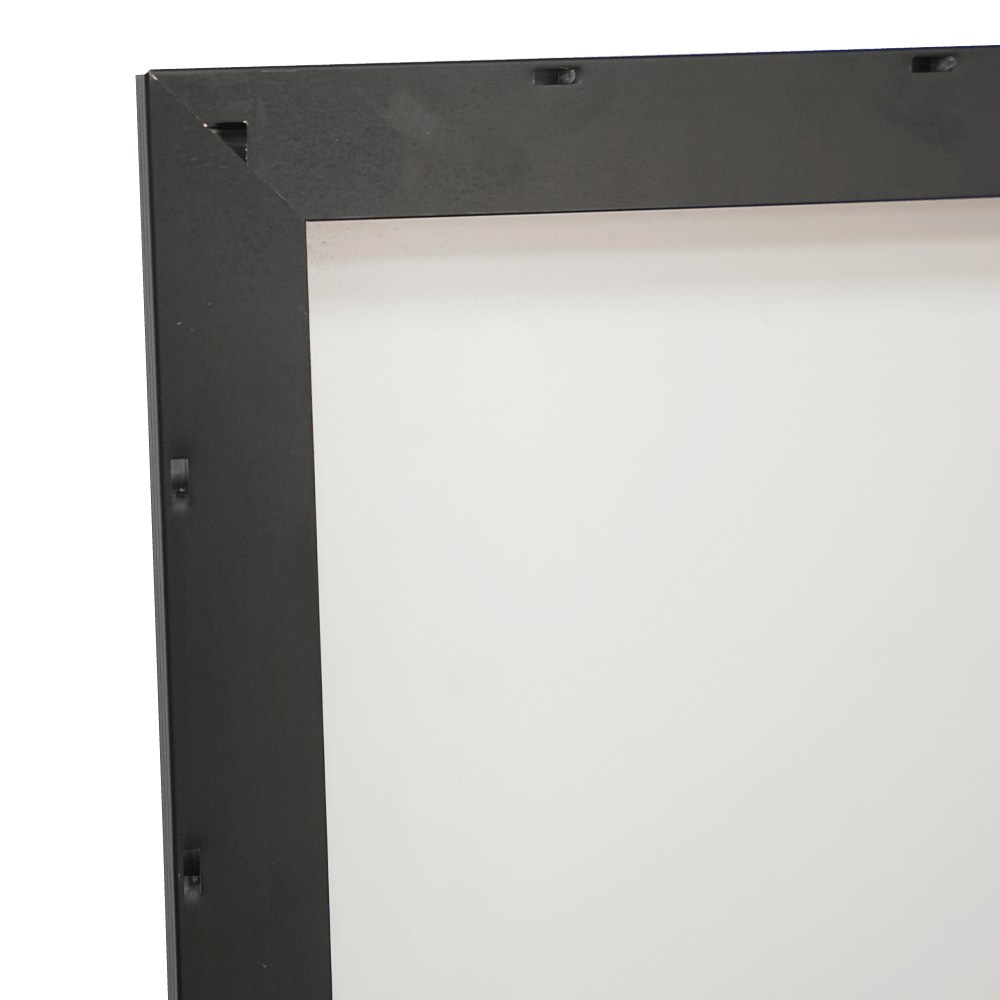

| Artus | anodized aluminium offensionis |

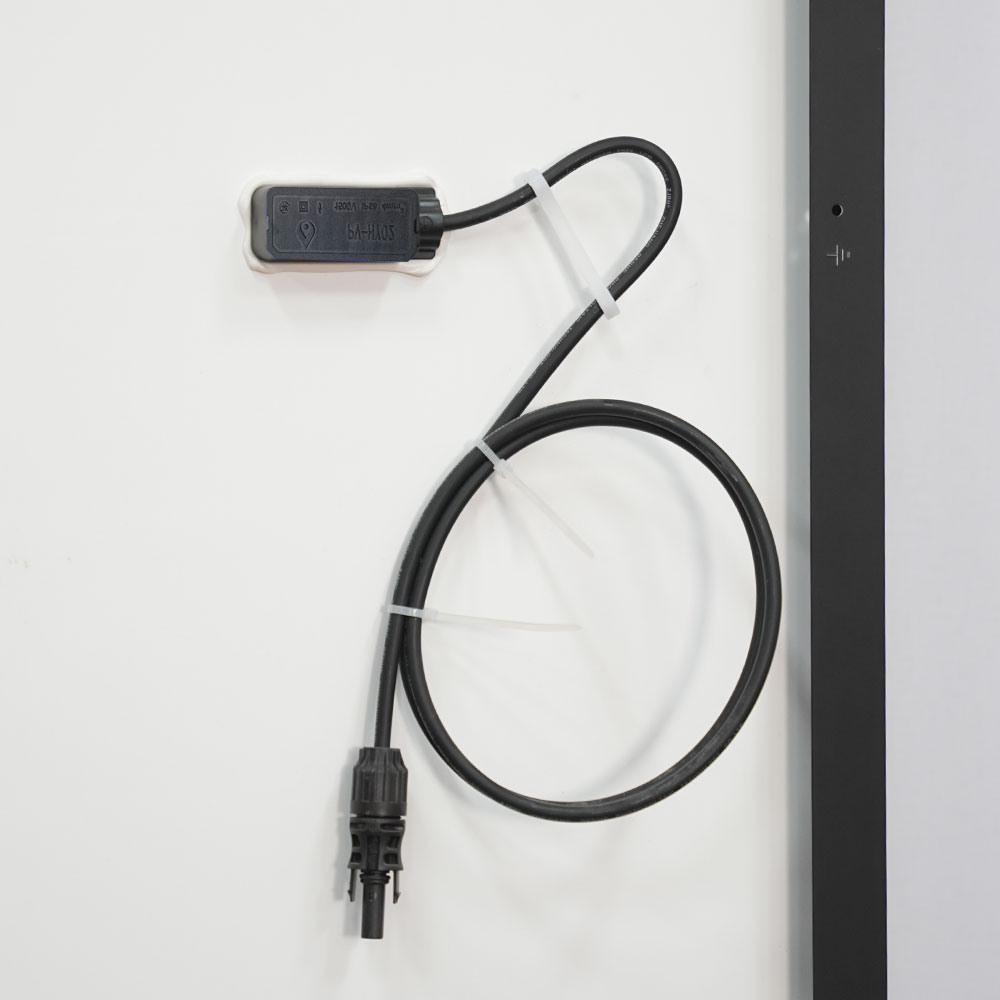

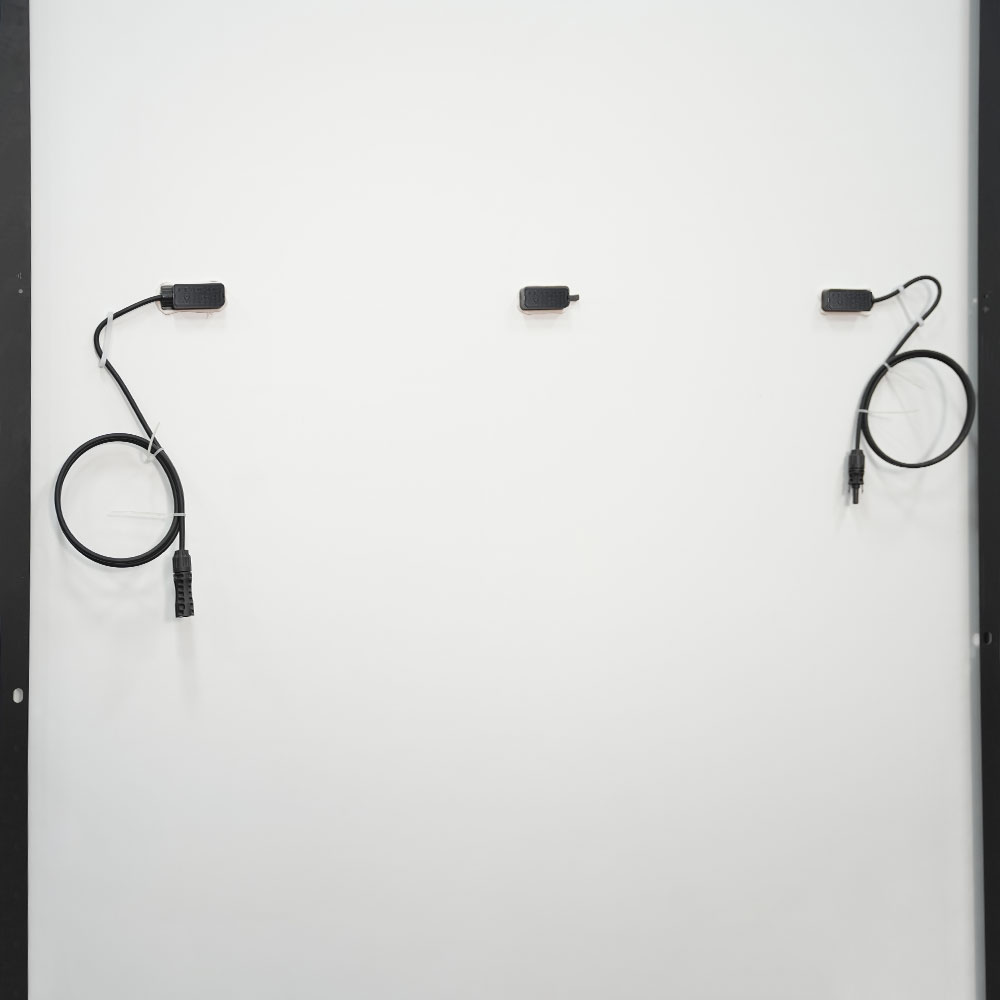

| J-BOX | IP68，3 diodes |
| Cable | 4.0mm²，900mm, seu nativus |
| Ventus / nix Load | 2400Pa/5400Pa* |
| Connector | MC Compatible |
| * Pro magis details placere reprehendo institutionem manual | |
| Temperature Ratings | |
| Temperature Coefficientof Pmax | -0.300%/ |
| Nominal Operating Cell Temperature (NOCT) | 44±2℃ |
| Temperature Coefficiens Isc | 0.041%/ |
| Temperature Coefficiens Vocis | -0.25%/℃ |
| Maximum Ratings | |
| Temperature operational | -40- 85℃ |
| Maxime Ratio intentione | 1500V DC |
| Max Series Fuse Rating | 25A |
| Packaging configurationis | |
| OMNIBUS per box | 36 36=72pieces |
| OMNIBUS per 40' continens | 936pieces(30Frame) |

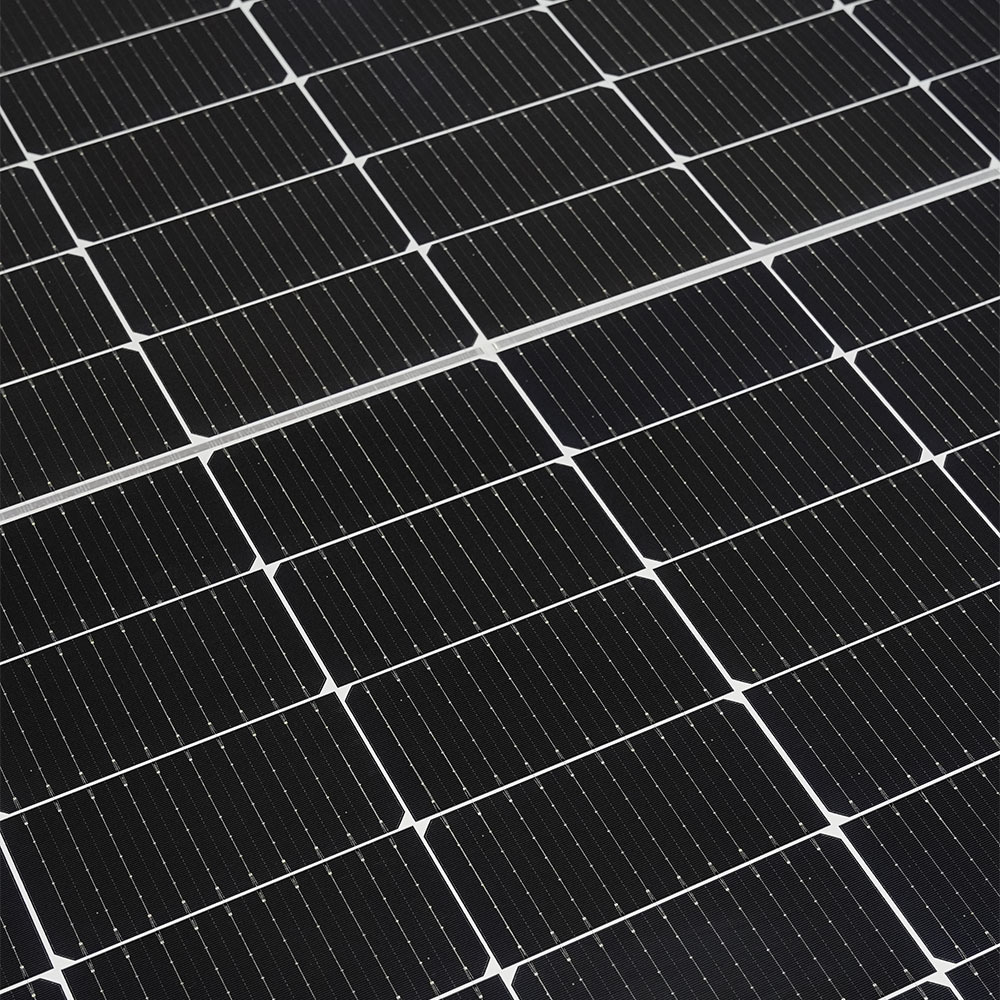

Mediae cellae melioris moduli constantiae sunt, et multi-busbari cellae accentus cum oneribus uniformibus prohibent.
