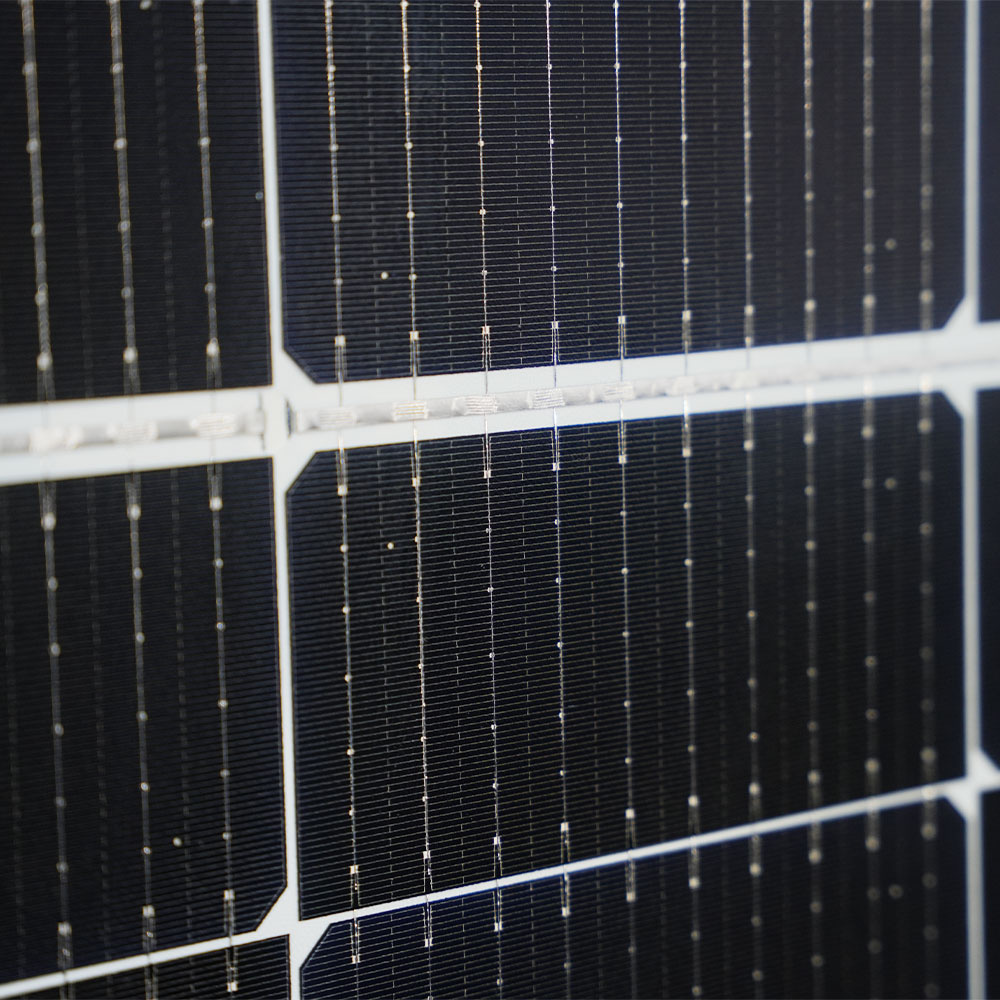

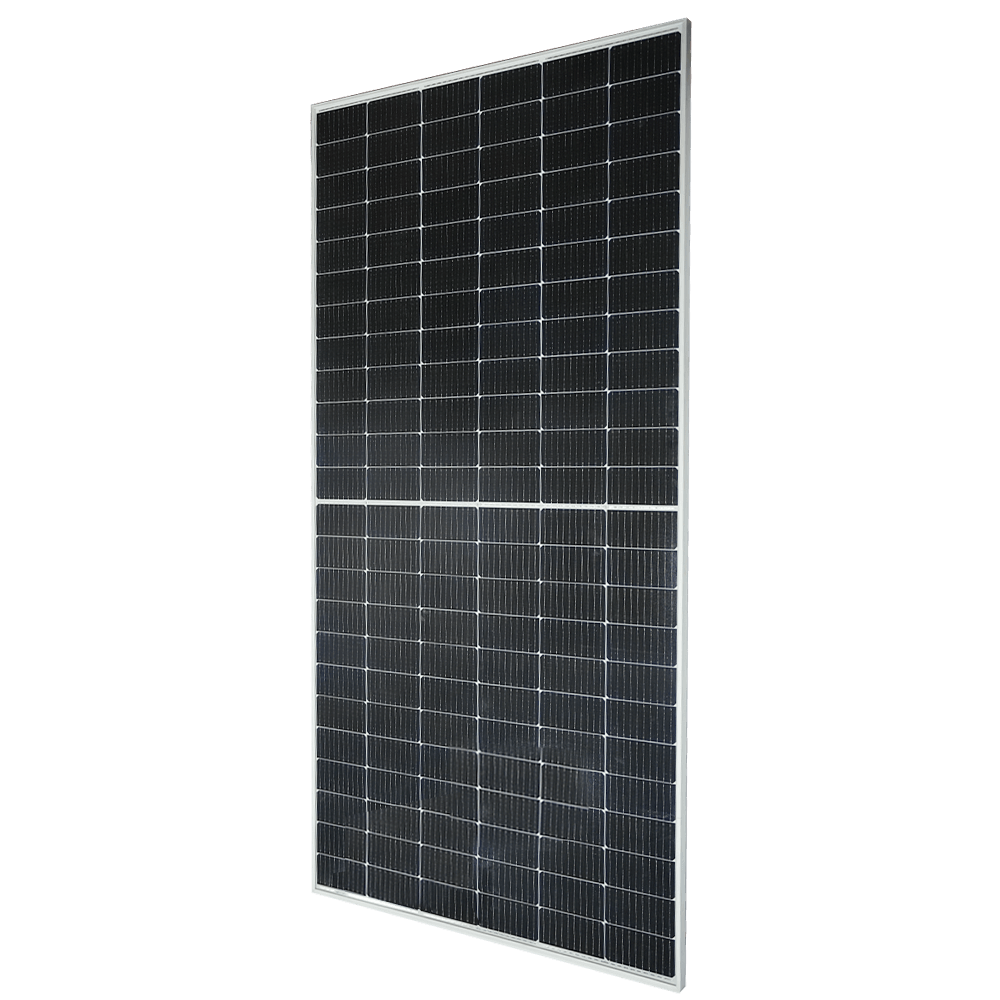

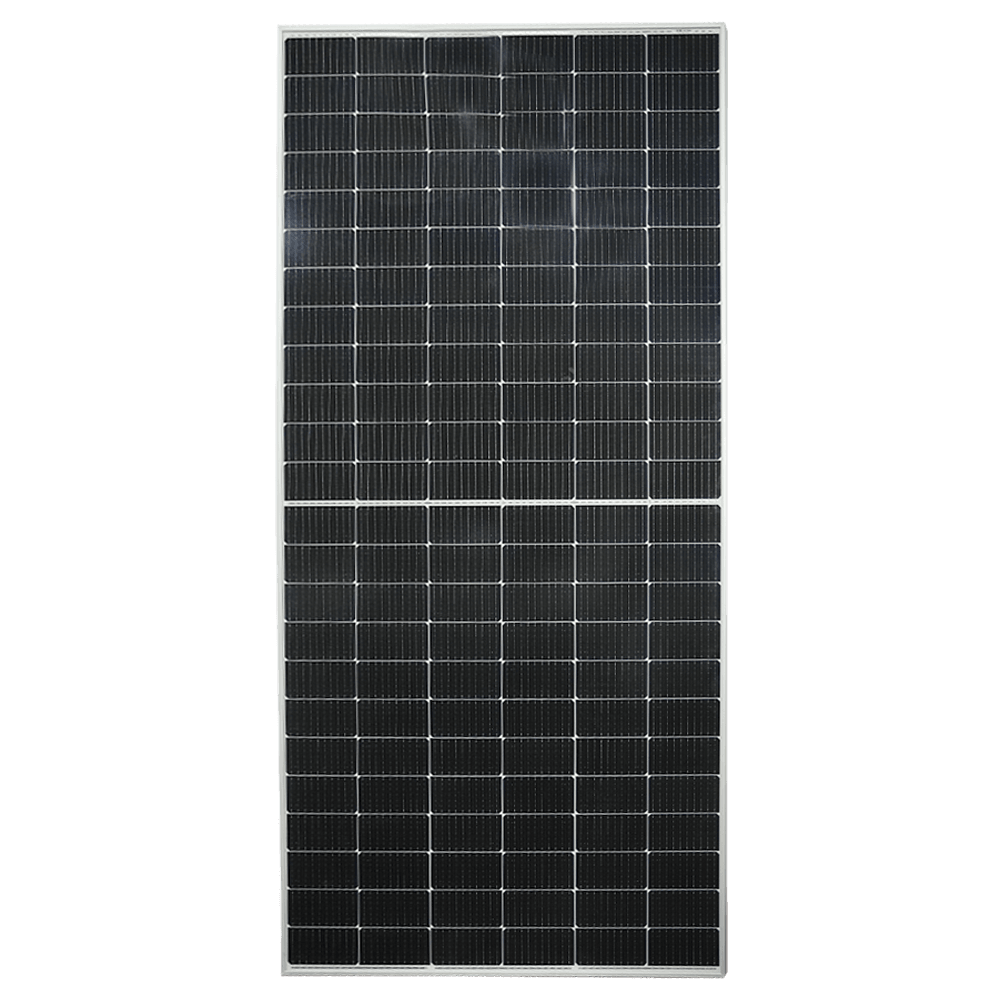

Ex lagana Pii 182mm et TOPCON cellulis monocrystallicis, usque ad 590Wp potentiae emissi cum consilio porttitor, et efficientia usque ad 22.83%. pertingere potest.
| Electrical Specification | |||||||||||||||||
| OMNIBUS Type | M182H672-555W | M182H672-560W | M182H672-565W | M182H672-570W | M182H672-575W | M182H672-580W | M182H672-585W | M182H672-590W | |||||||||
| Test signa | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power | Pmax(W) | 555 | 421 | 560 | 424 | 565 | 428 | 570 | 432 | 575 | 436 | 580 | 440 | 585 | 444 | 590 | 448 |
| Maximum Power intentione | Vmp(V) | 42.2 | 39.6 | 42.4 | 39.8 | 42.6 | 40 | 42.8 | 40.2 | 43 | 40.4 | 43.2 | 40.6 | 43.4 | 40.8 | 43.6 | 41 |
| Maximum Power Current | Imp(A) | 13.16 | 10.61 | 13.21 | 10.65 | 13.27 | 10.7 | 13.32 | 10.74 | 13.38 | 10.79 | 13.43 | 10.84 | 13.48 | 10.89 | 13.53 | 10.94 |
| Open Circuit Voltage | Voc(V) | 50.48 | 48.2 | 50.68 | 48.4 | 50.88 | 48.6 | 51.08 | 48.7 | 51.28 | 48.9 | 51.48 | 49.1 | 51.68 | 49.3 | 51.88 | 49.5 |
| Brevis Circuitu Current | Isc(A) | 14.06 | 11.23 | 14.12 | 11.28 | 14.18 | 11.33 | 14.24 | 11.38 | 14.3 | 11.42 | 14.36 | 11.46 | 14.42 | 11.5 | 14.48 | 11.54 |
| Module Efficens | (%) | 21.48 | 21.67 | 21.86 | 22.06 | 22.25 | 22.44 | 22.64 | 22.83 | ||||||||
| Virtus output tolerantia | (%) | 0-±5 | |||||||||||||||
| Per tolerantia Power Test | (W) | ±3 | |||||||||||||||
| (STC*)* irradiatio 1000W/㎡，Modulus Temperature 25℃，Aeris Missa 1.5 (NOCT*)* Irradiantia 800W/㎡，Ambient Temperature 20℃，Velitas 1m/s" | |||||||||||||||||
| Mechanica Data | |
| Numerus Cellulae | 144Cells(6-24) |
| Dimensiones moduli L*W*H（mm） | 2279×1134×35mm |
| Pondus kg | 27kg |
| vitrum | Alta diaphaneitas vitri solaris 3.2mm |

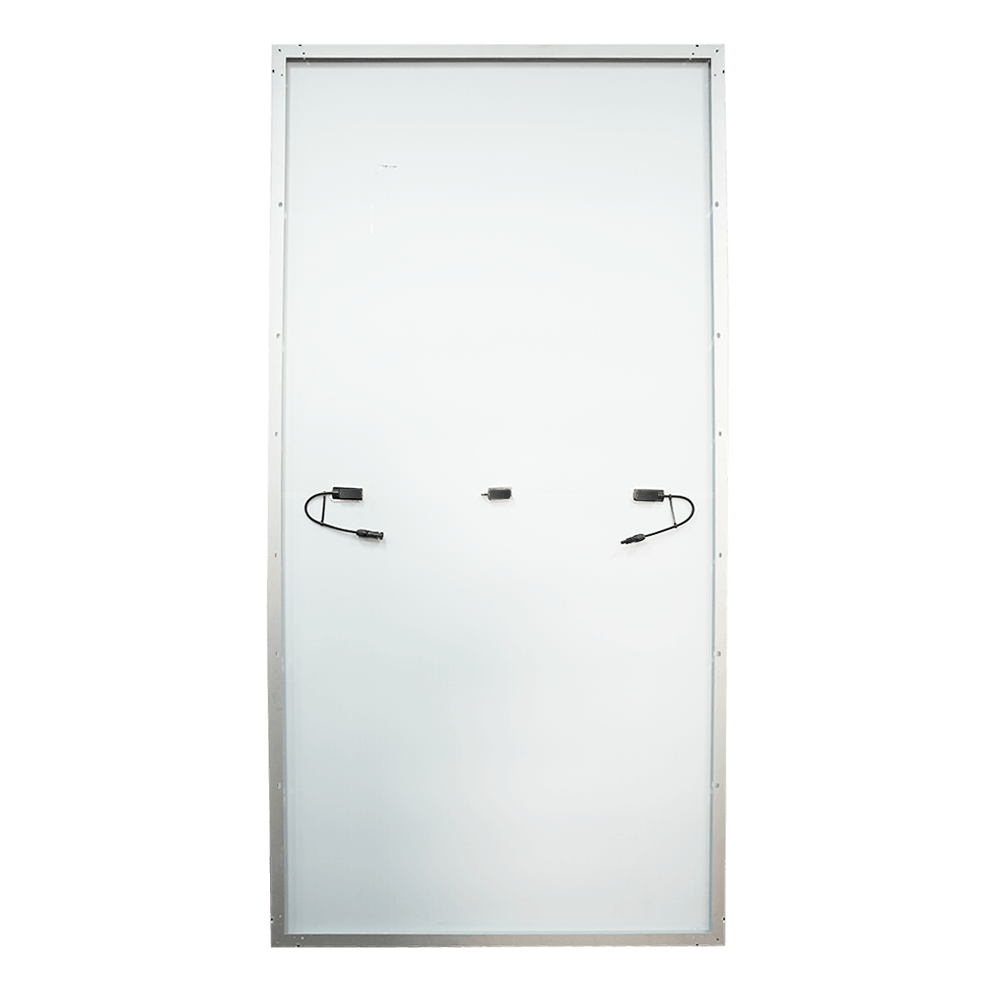

| Backsheet | album |
| Artus | anodized aluminium offensionis |

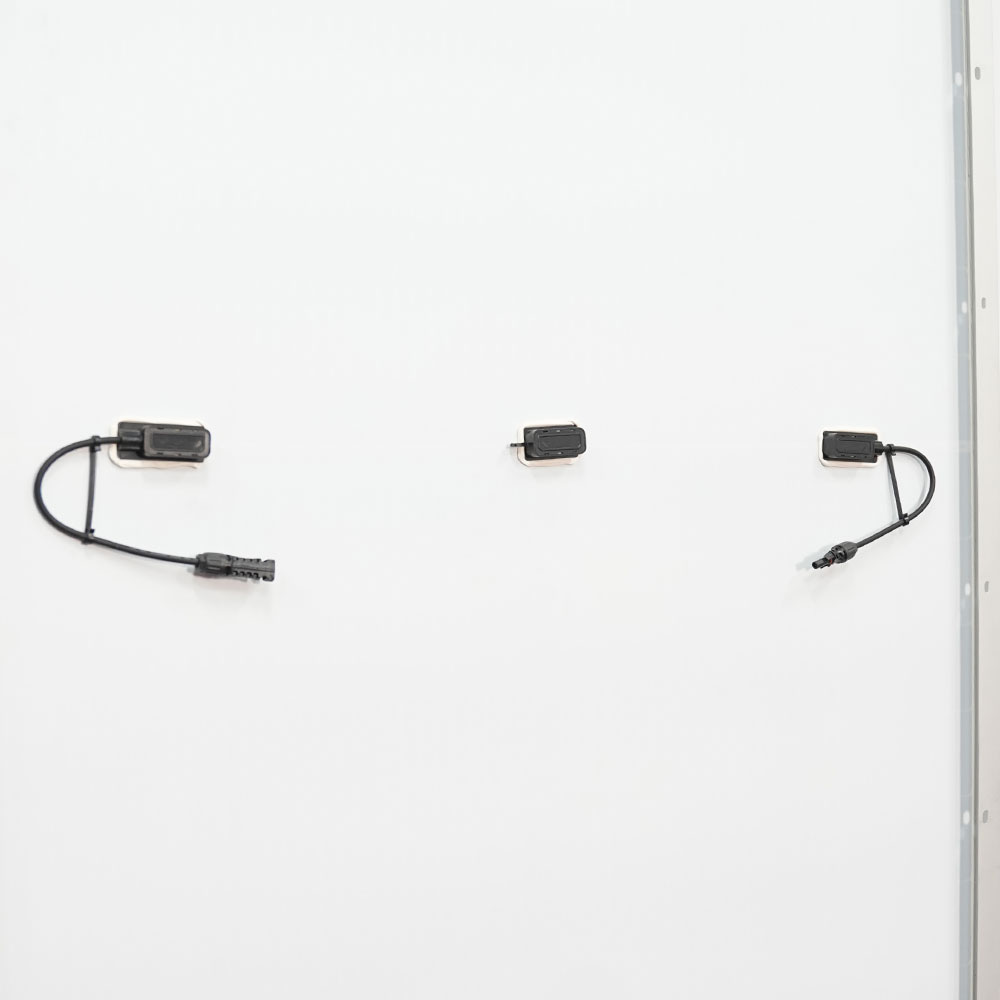

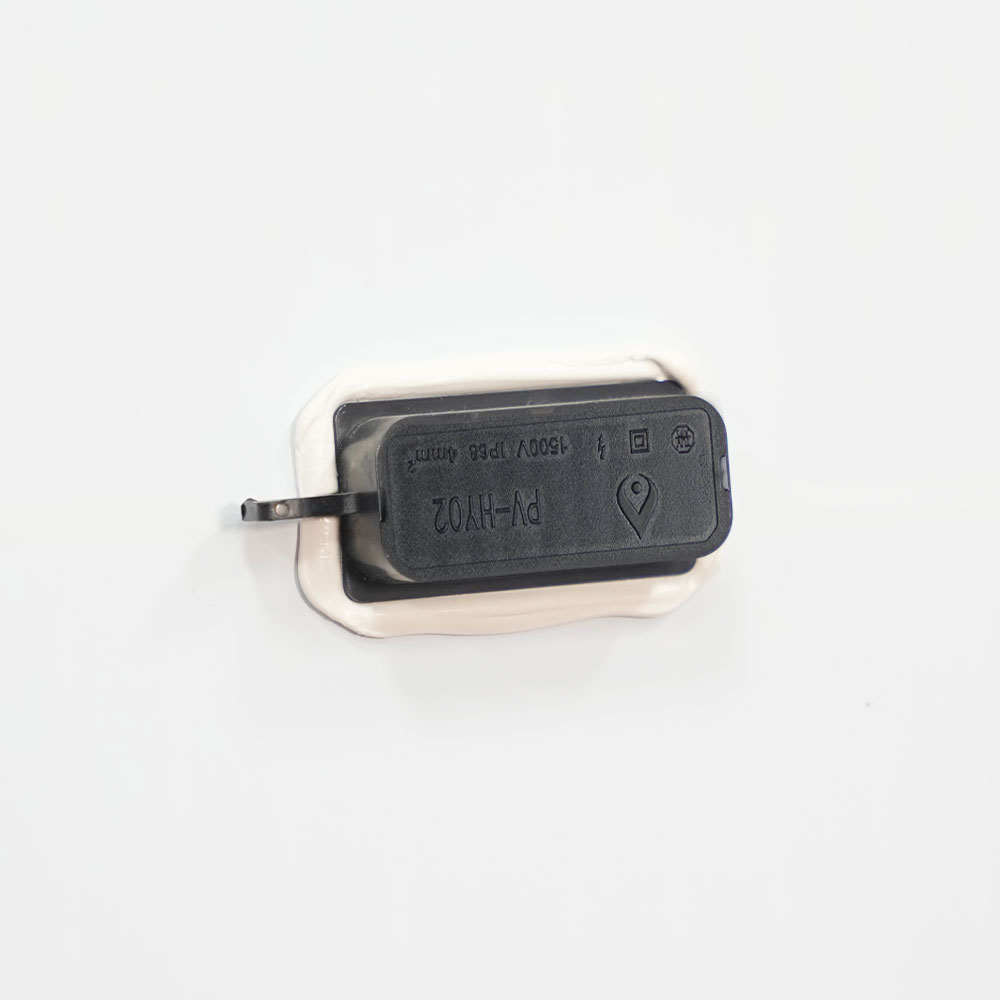

| J-BOX | IP68，3 diodes |

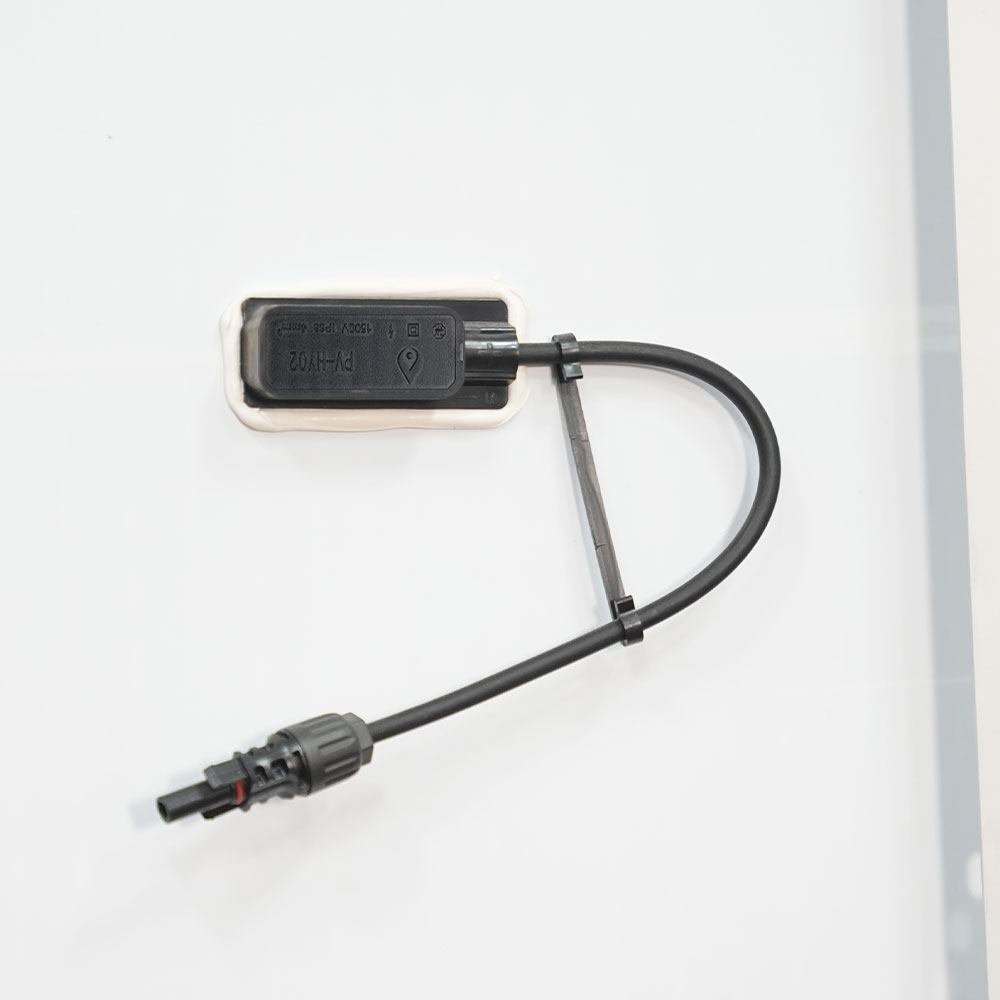

| Cable | 4.0mm²，300mm, or nativus |
| Ventus / nix Load | 2400Pa/5400Pa* |
| Connector | MC Compatible |
| * Pro magis details placere reprehendo institutionem manual | |
| Temperature Ratings | |
| Temperature Coefficientof Pmax | -0.300%/ |
| Nominal Operating Cell Temperature (NOCT) | 44±2℃ |
| Temperature Coefficiens Isc | 0.041%/ |
| Temperature Coefficiens Vocis | -0.25%/℃ |
| Maximum Ratings | |
| Temperature operational | -40- 85℃ |
| Maxime Ratio intentione | 1500V DC |
| Max Series Fuse Rating | 25A |
| Packaging configurationis | |
| OMNIBUS per box | 31 31=62pieces |
| OMNIBUS per 40' continens | 620pieces(35Frame) |
